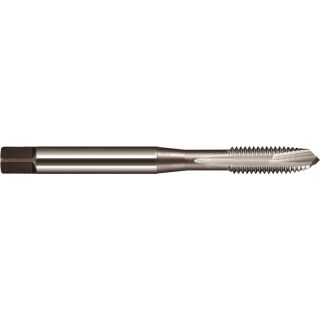

machine tap HSSE-Co DIN 371 M 5
PREMIUM Machine tap Taps for through holes Easy gate/ High cutting performance/ Optimal chip removal/ Ground from solid material, HSS/ Profile - ground and backed off/ /
Usage:For exact true to gauge thread for metric ISO-thread DIN 13 Designed to drill: Unalloyed and Low-Alloyed Steel, Rust and Acid Restistant Steel (V2A, V4A), Malleable Cast Iron, Non-Ferrous Metals, up to 1.200 N/mm² Taps for through holes
Package: Single packaging DIY
¯ mm M5
Stg. 0,8
GL 70
Gew. L 13
Kernl. 4,2
Norm DIN 371 (M3-M10) / DIN 376 ( M10)
Tolerance ISO 2 (6H)
material HSSE-Co
shape of flute Spiral pointed form B
Constructional features acc. to DIN 2197
Constructional features acc. to DIN 2197
Chamfer Form B with spiral point 4 - 5 pitch chamfer
Thread Profile-ground, backed off
Hole Taps for through holes
